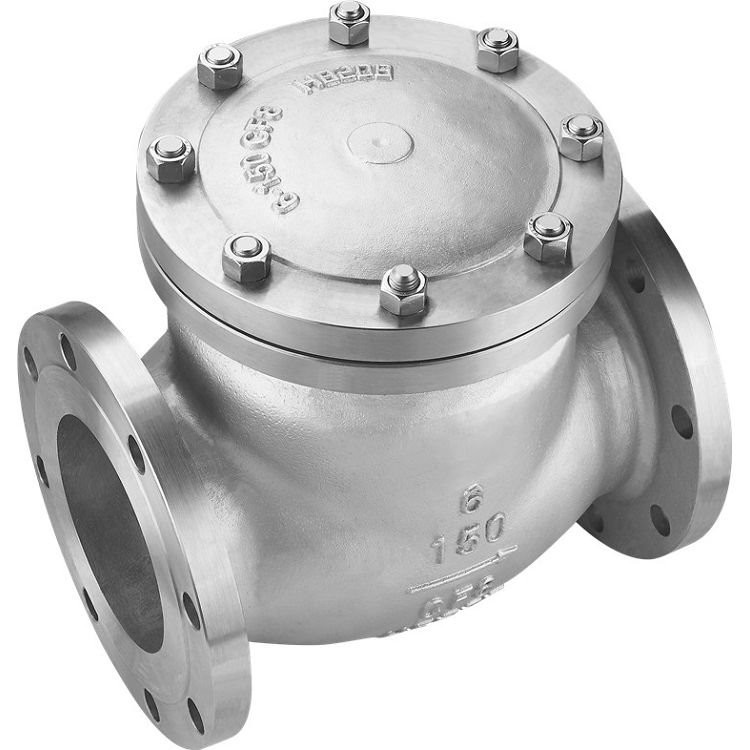

ANSI 150 Flange Swing Check Valve
1/2 inch ~ 2 inch
Pressure Rating
150LB ‐ 4500 LB
Standard Connections
- Product Introduction
Size
1/2 inch ~ 2 inch
Pressure Rating
150LB ‐ 4500 LB
Standard Connections
Flanged Ends (RF,FF)
Material
Body/ Bonnet: 304 316
Seat: 304 316
Stem: 304 316
Features And Benefits
Bolted Bonnet Or Welded Bonnet Pressure Sealed Bonnet
Full Bore
Swing Type Disc or Lift Type Disc
Swing or Lift Type
Product enforce standard
Design spec | Face to face | Flanged end | Test and check | Pressure-temp |
GB/T12236 | GB/T1221 | GB/T9113 | JB/T9092 | GB/T12224 |
Material of Main parts
Part name | Material | |
Body | CF8 | CF8M |
Bonnet | CF8 | CF8M |
Ball | CF8 | CF8M |
Stem | CF8 | CF8M |
MAIN external and connecting dimensions
DN | L | D | D1 | D2 | b | Z-d | H |
50 | 230 | 160 | 125 | 100 | 16 | 4-18 | 16 |
65 | 290 | 180 | 145 | 120 | 18 | 4-18 | 177 |
80 | 310 | 195 | 160 | 135 | 20 | 8-18 | 187 |
100 | 350 | 215 | 180 | 155 | 20 | 8-18 | 202 |
125 | 400 | 245 | 210 | 185 | 22 | 8-18 | 227 |
150 | 480 | 280 | 240 | 210 | 24 | 8-23 | 263 |
200 | 600 | 335 | 295 | 265 | 26 | 12-23 | 293 |
Arguments
Nominal size: DN50-DN200
Body material: 304, 316, 316L
Connection type: Flange
Pressure class: PN16 MPa
Structure type: Floating ball core Valve components
Seat material: PTFE: -30~180C
PPL: -30~250C
Core material: 304, 316, 316L
Stem material: 304
Applicable medium: Water, oil, steam, etc Performance
Why choose us?
- We are committed to building a better future through sustainable manufacturing practices and responsible environmental stewardship.
- Thank you for your trust and love. We believe you will enjoy the same quality after-sales service when you get our high-quality ANSI 150 Flange Swing Check Valve.
- Our Flange Check Valve products are rigorously tested to ensure safety, reliability, and durability.
- We adhere to our company vision and pursue the realization of personal values and high quality of life to achieve our career goals.
- We value our relationships with our customers and are committed to providing excellent service and support for years to come.
- Our company is one of the most competitive ANSI 150 Flange Swing Check Valve brands at home and abroad and can quickly respond to customer needs and develop the required products in a timely manner.
- We are constantly expanding our product line to meet the evolving needs of the market and our customers.
- Our company constantly introduces high-quality talents, adheres to the belief of 'pioneering and enterprising, continuous innovation, keeping pace with the times and keeping improving', and is more and more favored by the majority of users with excellent product quality and perfect after-sales service.
- Our Flange Check Valve products are designed to meet the demands of modern industry, ensuring safe and reliable operations.
- Please contact us if you are interesting our products.
